 How to Modify My Circuit to Get 2A
 New Topic  Reply to Topic
 Printer Friendly
Author Previous Topic Topic Next Topic

milk1995
New Member

3 Posts

Posted - Jul 08 2017 :  05:05:44 AM  Show Profile  Reply with Quote

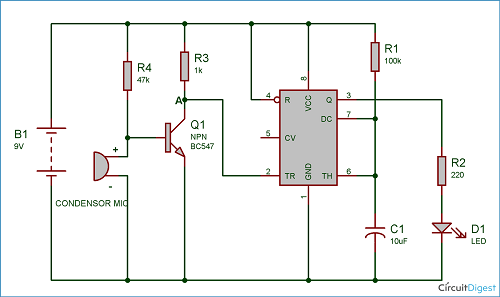

Please look at the following circuit:
Download Attachment: 7.8.2.png
26.67 KB



This circuit is based on BC547 NPN#65288; http://www.kynix.com/uploadfiles/pdf8827/BC547A.pdf #65289;, I would like to ask that:
In the given circuit what will be the voltage and current the D1 led will revcive? I need to replace the led to get at least 5v 2A current at the place? What would be the changes in the circuit and how is it done? Can I get 2A directly out of a 555 ?
Please give me some help! Thanks.



Edited by - milk1995 on Jul 08 2017 05:18:33 AM

Aaron Cake
Administrator

Canada
6717 Posts

Posted - Jul 08 2017 :  10:43:10 AM  Show Profile  Visit Aaron Cake's Homepage  Send Aaron Cake an ICQ Message  Send Aaron Cake a Yahoo! Message  Reply with Quote
According to the data sheet, a 555 timer can at most supply or sink 200mA at its output.

R=V/I so assuming a LED voltage of 1.5V then you are looking at about 7mA to drive that LED.

If you want to get more output from the 555 timer, you need to drive a MOSFET or transistor with the 555 to sink the current.

By far the dead easiest is to use a logic level MOSFET. No additional driver circuitry is required. My favourite is the IRLU3410. Output of 555 goes directly to gate. Also connect 1M resistor from gate to ground to bleed of internal capacitance. Source to ground, drain to cathode of LED while anode of LED connects to =V with appropriate resistor.
Go to Top of Page

milk1995
New Member

3 Posts

Posted - Jul 09 2017 :  10:20:10 PM  Show Profile  Reply with Quote
Hi,Aaron
Thanks for you kind suggestions. I am beginning to research IRLU3410.
Go to Top of Page

audioguru
Nobel Prize Winner

Canada
4218 Posts

Posted - Jul 14 2017 :  1:57:44 PM  Show Profile  Reply with Quote
You will not get 2A from a little 9V battery that powers the circuit.

It is a horrible circuit:
1) I do not think the electret mic (it is not a condenser mic) will work when its voltage is clamped to only 0.6V by the base-emitter of the transistor.
2) The transistor will do almost nothing since it is turned on all the time. Then the 555 will not be triggered.
Go to Top of Page
