 tone control design		  New Topic  Reply to Topic
 Printer Friendly
Author Previous Topic Topic Next Topic

deadwordz
New Member

Philippines
1 Posts
Posted - Nov 30 2010 :  04:17:53 AM  Show Profile  Reply with Quote
hi guys,i'm just new here.,can somebody share me a design on this tone control posted here on aaroncake..,,thanks in advance...,

audioguru
Nobel Prize Winner

Canada
4218 Posts
Posted - Nov 30 2010 :  09:15:09 AM  Show Profile  Reply with Quote
The Philips IC used in the tone control project here is obsolete and is not made anymore. National Semi still might make their tone control IC and the complete schematic will be on its datasheet.

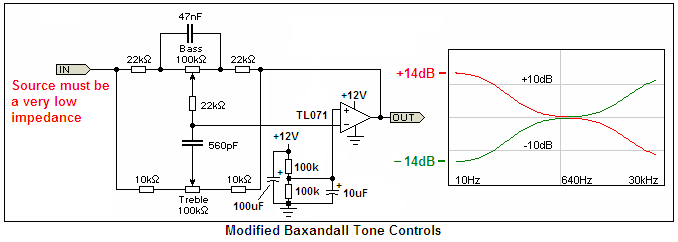

Here is a tone control circuit that has been used for many years:

Download Attachment: Baxandall tone controls2.PNG
13.56 KB
