6V to 12V Converter

Author	Views	Views Today	Rank	Comments
	212,148	145		110

This inverter circuit can provide up to 800mA of 12V power from a 6V supply. For example, you could run 12V car accessories in a 6V (British?) car. The circuit is simple, about 75% efficient and quite useful. By changing just a few components, you can also modify it for different voltages.

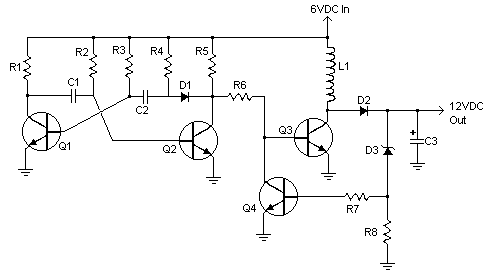

Schematic

Parts

Part	Total Qty.	Description	Substitutions
R1, R4	2	2.2K 1/4W Resistor
R2, R3	2	4.7K 1/4W Resistor
R5	1	1K 1/4W Resistor
R6	1	1.5K 1/4W Resistor
R7	1	33K 1/4W Resistor
R8	1	10K 1/4W Resistor
C1,C2	2	0.1uF Ceramic Disc Capacitor
C3	1	470uF 25V Electrolytic Capcitor
D1	1	1N914 Diode
D2	1	1N4004 Diode
D3	1	12V 400mW Zener Diode
Q1, Q2, Q4	3	BC547 NPN Transistor
Q3	1	BD679 NPN Transistor
L1	1	See Notes
MISC	1	Heatsink For Q3, Binding Posts (For Input/Output), Wire, Board

Notes

L1 is a custom inductor wound with about 80 turns of 0.5mm magnet wire around a toroidal core with a 40mm outside diameter.

Different values of D3 can be used to get different output voltages from about 0.6V to around 30V. Note that at higher voltages the circuit might not perform as well and may not produce as much current. You may also need to use a larger C3 for higher voltages and/or higher currents.

You can use a larger value for C3 to provide better filtering.

The circuit will require about 2A from the 6V supply to provide the full 800mA at 12V.
