Fixed Voltage Power Supply

Author	Views	Views Today	Rank	Comments
	97,224	65		41

The fixed voltage power supply is useful in applications where an adjustable output is not required. This supply is simple, but very flexable as the voltage it outputs is dependant only on the regulator and transformer you choose. The maximum output current is 1.5A.

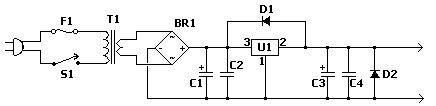

Schematic

Parts

Part Total Qty. Description Substitutions

C1 1 2200uF 35V Electrolytic Capacitor

C2, C4 2 0.1uF Ceramic Disc Capacitor

C3 1 10uF 35V Electrolytic Capacitor

D1, D2 2 1N4007 Silicon Diode

BR1 1 2A 30V Bridge Rectifier

U1 1 Regulator (See Notes)

T1 1 Transformer (See Notes)

S1 1 SPST 2 Amp Switch

F1 1 2A 250V Fuse and Holder

MISC 1 Heatsink For U1, Line Cord, Case, Wire

Notes

Since this project operates from 120 (or 220, or 240, etc.) volts AC, it MUST be built inside a case.

U1 will reauire a heatsink.

You will need to choose T1 and U1 to match the voltage you want. Use the table below as a reference.

Output Voltage T1 U1

5V 6V, 1.5A 7805

6V 6V, 1.5A 7806

9V 12V, 1.5A 7809

12V 12V, 1.5A 7812

15V 24V, 1.5A 7815

18V 24V, 1.5A 7818
