3 Watt FM Transmitter


Home > Circuits > Sound/Radio > 3 Watt FM Transmitter
Author Views Views Today Rank Comments
Rae XL Tkacik 244,711 15 77
This is the schematic for an FM transmitter with 3 to 3.5 W output power that can be used between 90 and 110 MHz. Although the stability isn't so bad, a PLL can be used on this circuit.

This is a circuit that I've build a few years ago for a friend, who used it in combination with the BLY88 amplifier to obtain 20 W output power. From the notes that I made at the original schematic, it worked fine with a SWR of 1 : 1.05 (quite normal at my place with my antenna).

Schematic

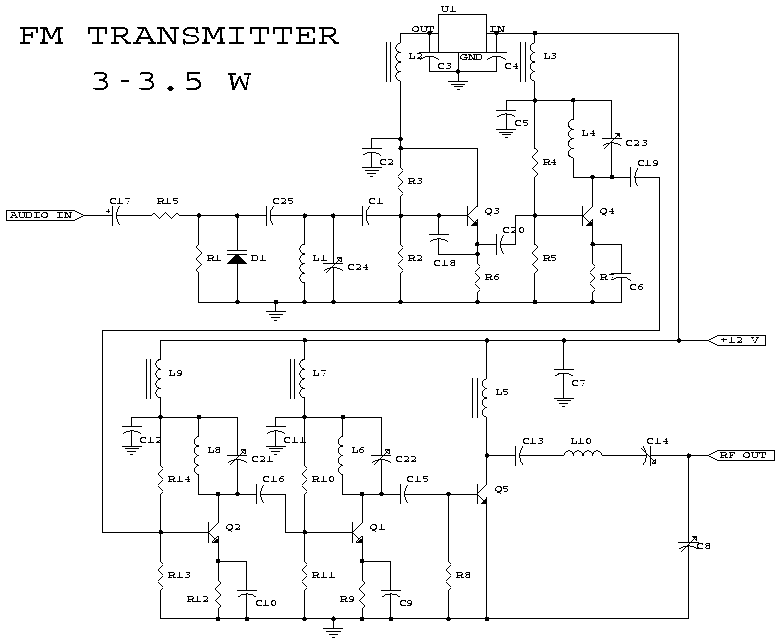

This is the schematic of the 3W FM Transmitter

Parts

Part
Total Qty.
Description
Substitutions
R1,R4,R14,R15410K 1/4W Resistor
R2,R3222K 1/4W Resistor
R5,R1323.9K 1/4W Resistor
R6,R112680 Ohm 1/4W Resistor
R71150 Ohm 1/4W Resistor
R8,R122100 Ohm 1/4W Resistor
R9168 Ohm 1/4W Resistor
R1016.8K 1/4W Resistor
C114.7pF Ceramic Disc Capacitor
C2,C3,C4,C5,C7,C11,C127100nF Ceramic Disc Capacitor
C6,C9,C10310nF Ceramic Disc Capacitor
C8,C14260pF Trimmer Capacitor
C13182pF Ceramic Disc Capacitor
C15127pF Ceramic Disc Capacitor
C16122pF Ceramic Disc Capacitor
C17110uF 25V Electrolytic Capacitor
C18133pF Ceramic Disc Capacitor
C19118pF Ceramic Disc Capacitor
C20112pF Ceramic Disc Capacitor
C21,C22,C23,C24440pF Trimmer Capacitor
C2515pF Ceramic Disc Capacitor
L115 WDG, Dia 6 mm, 1 mm CuAg, Space 1 mm
L2,L3,L5,L7,L956-hole Ferroxcube Wide band HF Choke (5 WDG)
L4,L6,L831.5 WDG, Dia 6 mm, 1 mm CuAg, Space 1 mm
L1018 WDG, Dia 5 mm, 1 mm CuAg, Space 1 mm
D11BB405BB102 or equal (most varicaps with C = 2-20 pF [approx.] will do)
Q112N3866
Q2,Q422N2219A
Q31BF115
Q512N3553
U117810 Regulator
MIC1Electret Microphone
MISC1PC Board, Wire For Antenna, Heatsinks

Notes

  1. Email Rae XL Tkacik with questions, comments, etc.
  2. The circuit has been tested on a normal RF-testing breadboard (with one side copper). Make some connections between the two sides. Build the transmitter in a RF-proof casing, use good connectors and cable, make a shielding between the different stages, and be aware of all the other RF rules of building.
  3. Q1 and Q5 should be cooled with a heat sink. The case-pin of Q4 should be grounded.
  4. C24 is for the frequency adjustment. The other trimmers must be adjusted to maximum output power with minimum SWR and input current.
  5. Local laws in some states, provinces or countries may prohibit the operation of this transmitter. Check with the local authorities.
